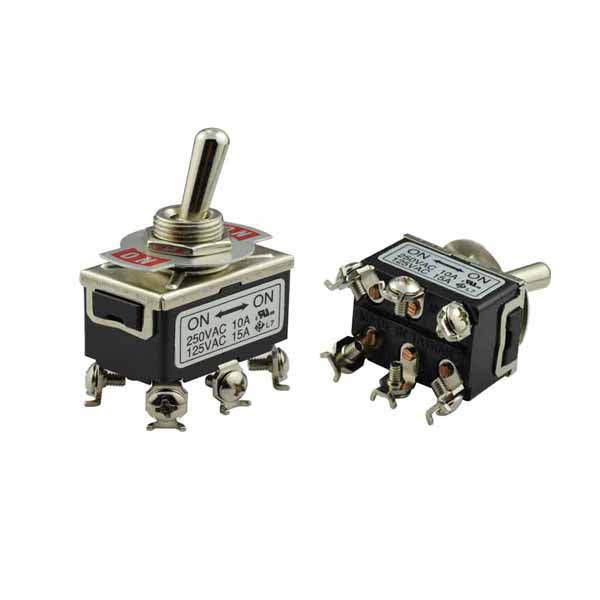

大電流鈕子開(kāi)關(guān) LT-506-3-C
Contact Rating: 15A 125VAC 10A 250VAC
Electrical Life: 6,000 cycles
Contact Resistance: 20mΩ max.
Insulation Resistance: 100MΩ min.
Operating Temperature:-25℃~+55℃
Contact Rating: 15A 125VAC 10A 250VAC
Electrical Life: 6,000 cycles
Contact Resistance: 20mΩ max.
Insulation Resistance: 100MΩ min.
Operating Temperature:-25℃~+55℃
